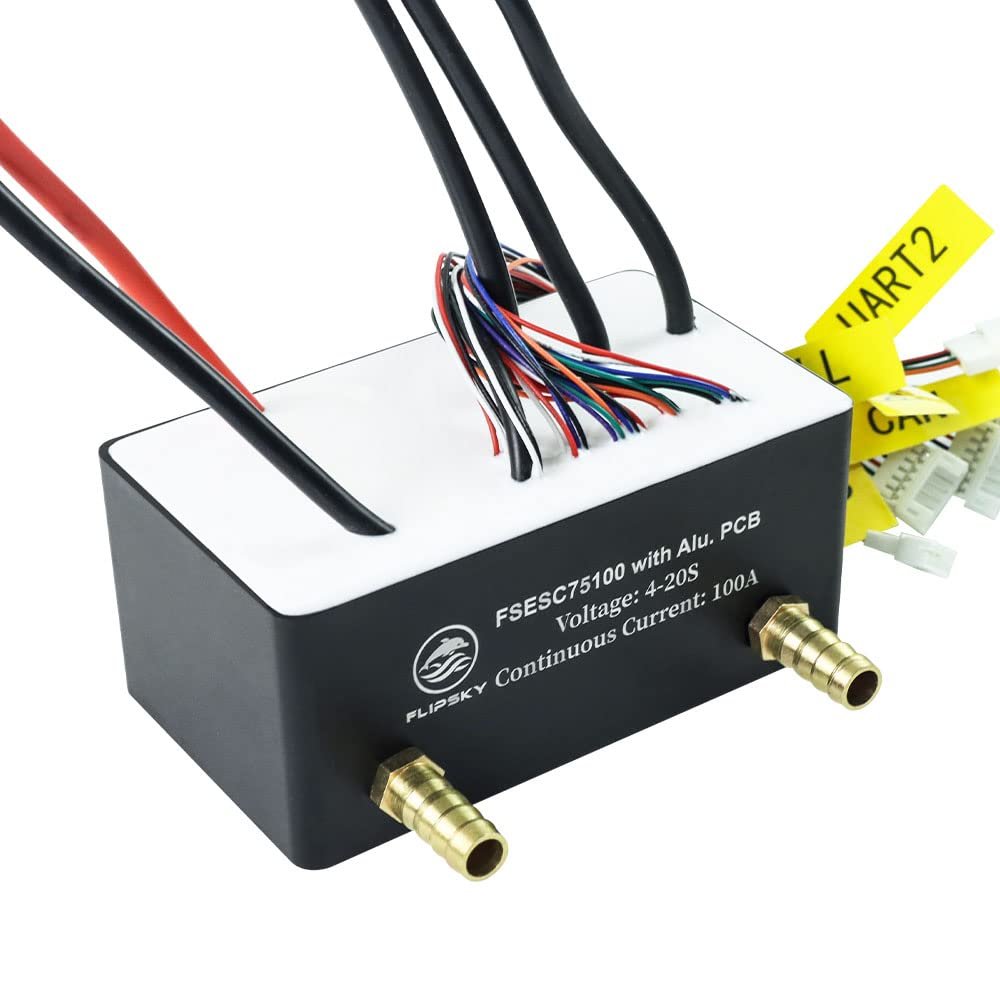

FLIPSKY Waterproof 75100 FOC 75V 100A Single ESC with Aluminum Heatsink for Electric Skateboard/Scooter/Ebike Speed Controller

Description

• Waterproof!!!Use aluminum alloy case for better heat dissipation effect,which makes ESC more durable.
• Support BLDC square wave mode control and FOC sine wave mode
• ProgrammableBased on VESC, programmable via vesc_tool with overheat and overcurrent protection.
• Supported Sensors:ABIHALLAS5047AS5048A
• More powerful :Voltage:14-84V (4-20S) Max Current:120A,ERPM:150000 .Provide your electric skateboard with more powerful power and a more exciting modification experience.
• Firmware: latest (firmware update supported). Please be careful to limit the Absolute Maximum Current below 250A.

Specs: Size:L103mm*W58mm*H18.5mm+5.9mm USB TYPE Voltage:14-84V (4-20S) Current:100A Continuous,burst 120A BEC:5V@1.5A Support BLDC square wave mode control and FOC sine wave mode Firmware: latest (firmware update supported) ERPM:150000 Control Interface Ports:USB,CAN,UART Supported Sensors:ABIHALLAS5047AS5048A Input Set Support:PPMADCNRF,UART Wire Size: 12AWG Programmable: Yes

Regenerative Capacity: YesWarm tips: Phase filering is not available for Flipsky ESC75100 and 75200! Please turn off the phase filter function and choose "false" in vesc_tool when use firmware version on or above 5.3 (VESC_TOOL 3.01). Without turning off the phase filter will result in esc damage. Please do not restore the default parameters when using the wizard interface.
