YIYIBYUS Brush Motor Kit 36V 800W Electric Bike Scooter Engine Unite Motor 2800RPM Brush Motor for Bicycle, Tricycle, Electric Scooter, Extreme Scooter and Similar Bikes

Description

• 36v800w brushed motor fits for bicycle, tricycle, electric scooter, extreme scooter and similar bikes.
• Speed Controller: Works on 36V, 800W scooters and electric bikes; Type: brush speed controller; Voltage: 36V; Wattage: 800W; Casing material: aluminium; Color: silver; Dimensions: 105 x 69 x 32mm
• Plug: 1.Red & Black (large cable) : Battery connections; 2.Yellow & Blue : Motor connections; 3.Red & Blue : Key Switch(power lock) (If there is no power door locks,red connection to blue); 4.Yellow & black : brake; 5.Red & Yellow: Brake light; 6.Red&Black(small cable) : indicator light; 7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle ) (Red:+5v,Black: - ,Blue :Signal Wire); 8.Red & Black (small cable): Charger
• Throttle: Universal 12v 24v 36v 48v Black Electric Scooter Bike Throttle Grip; Beautiful outlook and modern design. Throttle Control Set Three Pin; Suit for Electric Throttle,Motorcycle,Scooter.
• Best Service. If you have any questions, please contact us. We will reply your within 24 hours.

Electric Bike Scooter 36V800W Motor Engine Unite Motor Brush Motor

Model MY1020
Electric EVO scooter parts
Fits : Tricycle , electric scooter , extreme scooter and similar bikes
36V800W Brushed motor Unite Brand Motor
We also have 36V500W for sale
motor sprocket 11 teeth
Diameter :10.5cm
Bracket foot width:12cm
Motor length :13.5cm
Fit:T8F/25H Chain
Rating power 800W 36V
Rating speed rate/rpm 2800rpm
Rating torque /N.m : 2.8 N.m
Efficiency : 78
Use : tricycle , bicycle , E-scooter, EVO scooter ,Extreme scooter

Speed Controller:
Works on 36V, 800W scooters and electric bikes
Type: brush speed controller
Voltage: 36V
Wattage: 800W
Casing material: aluminium
Colour: silver
Dimensions: 105 x 69 x 32mm

Plug :
1.Red & Black (large cable) : Battery connections
2.Yellow & Blue : Motor connections
3.Red & Blue : Key Switch(power lock)
(If there is no power door locks,red connection to blue)
4.Yellow & black : brake
5.Red & Yellow: Brake light
6.Red&Black(small cable) : indicator light
7.Red, Black & Blue: Speed Regulator 1-4 V(Throttle )
(Red:+5v,Black: - ,Blue :Signal Wire)
8.Red & Black (small cable): Charger

Throttle:
Universal 12v 24v 36v 48v Black Electric Scooter Bike Throttle Grip
Beautiful outlook and modern design.
Throttle Control Set Three Pin
Suit for Electric Throttle,Motorcycle,Scooter.

Specification:
Style: striae & Round
Operating voltage: 5V
Adjustment range: Minimum 1.0V; highest 4.0V
Function: high, medium and low grades governor

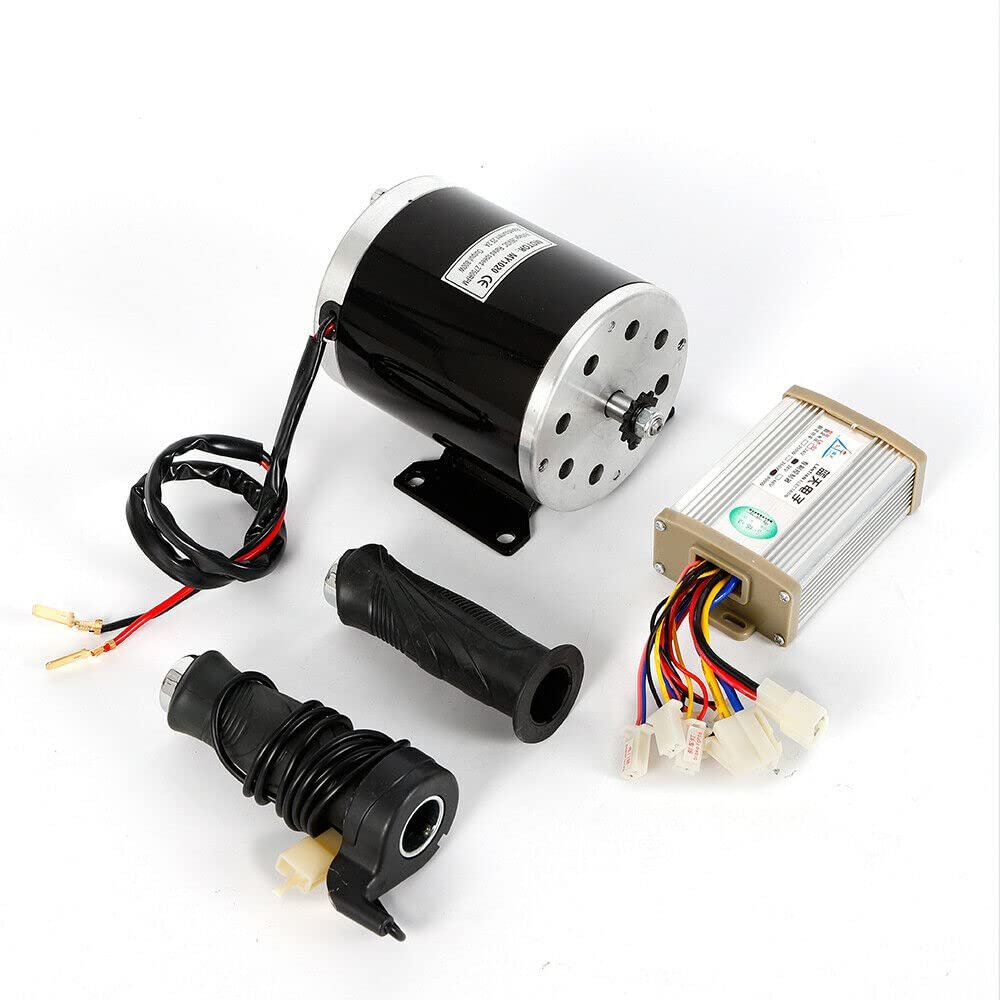

Package includes : 1x controller + a set of x throttle+ 1x Motor
